HOT-WHEELS-SERIES-LED-HIGHBAY-LIGHT

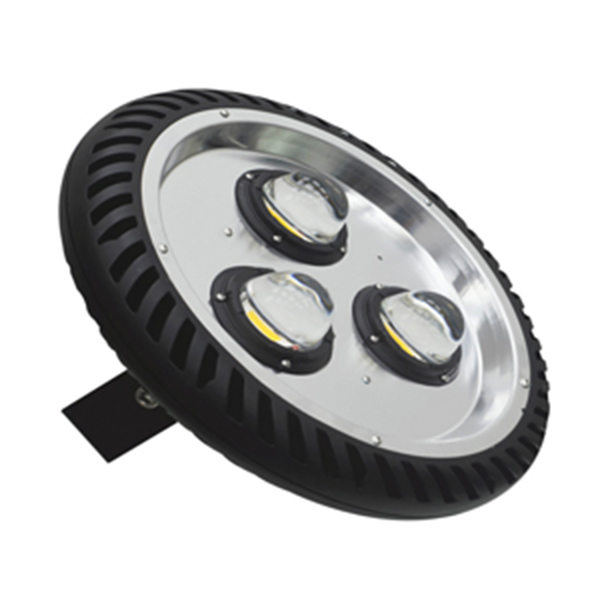

HOT WHEELS SERIES LED HIGHBAY LIGHT
Mainly used in workshop,factory,warehouse,highway toll station,large supermarket,exhibition hall,gymnasium and other lighting places
APPLICATION

Mainly used in workshop,factory,warehouse,highway toll station,large supermarket,exhibition hall,gymnasium and other lighting places

PRODUCT FEATURES HOUSING

High-density aviation aluminum,stretch forming,surface anodized and hardened,high gloss,incomparable Texture touching feeling.


LAMPSHADE

High-quality aviation aluminum reflective lampshade,reflective surface of lampshade is grinding pricessing,makes reflected light more uniform,soft.spotlight cover and diffuse cover are available

PADIATOR

Unique cooling design,a perfect combination with electric box,effective heat conduction,reduce the temperature of the housing,effectively ensure the service life of the ligt source and power supply;

DRIVER

Using high power LED light source,equipped with imported high efficiency driver power,compared with the sodium lamp energy saving more than 70%,real high efficiency and energy saving

Technical Parameters

Model No.

ZGE-GKD427W219-120LF

ZGE-GKD427W219-150LF

ZGE-GKD460W239-200LF

Power

120W

150W

200W

LED Qty

3pcs COB

3pcs COB

3pcs COB

Luminous Flux

12000lm±10%

15000lm+10%

2000lm+10%

Product Size

L427*W219*H106mm

L427*W219*H106mm

L427*W219*H106mm

Material

Aluminum+Optical Glass

Aluminum+Optical Glass

Aluminum+Optical Glass

Voltage

AC100-277V 50/60Hz

AC100-277V 50/60Hz

AC100-277V 50/60Hz

Die casting color

Black/Silver

Black/Silver

Black/Silver
