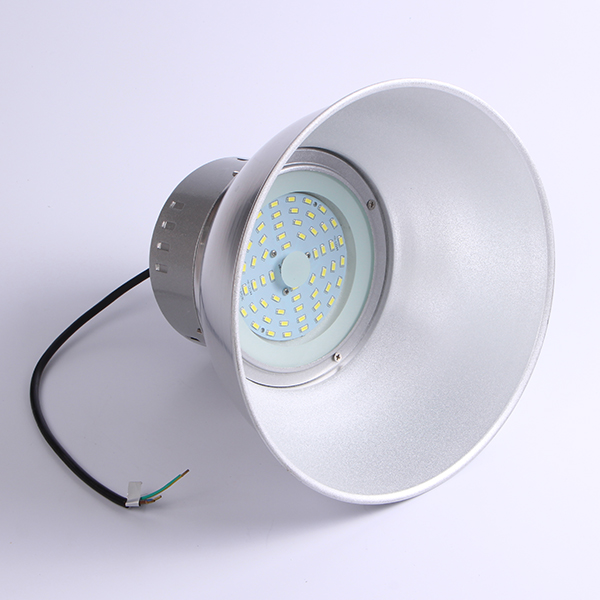

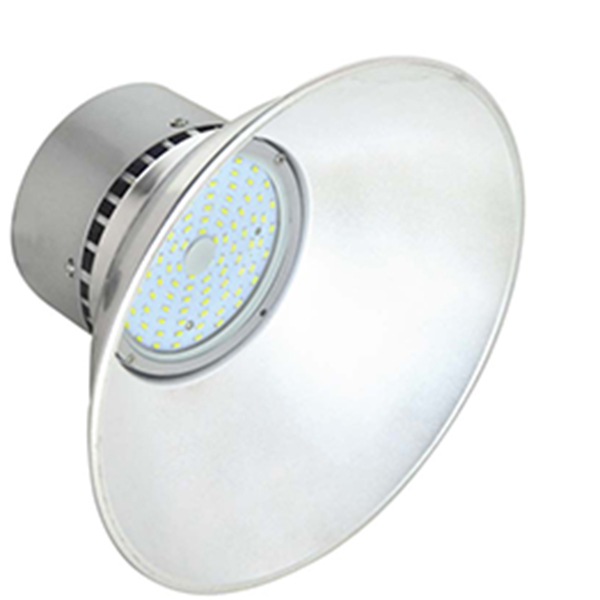

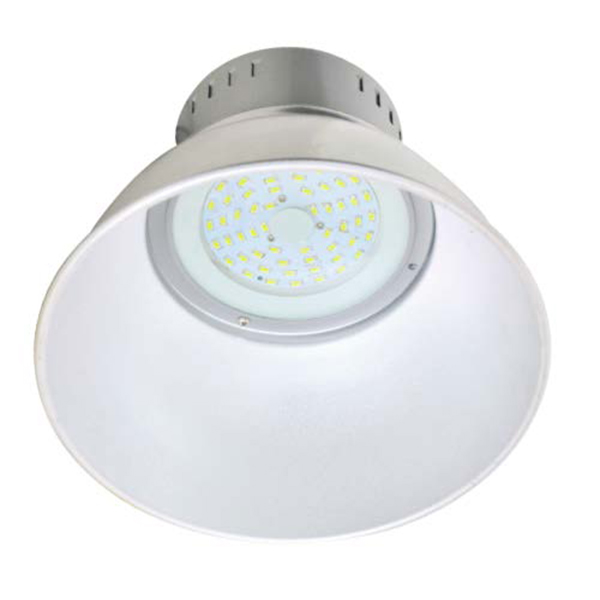

TL SERIES LED HIGHBAY LIGHT
Mainly used in workshop,factory,warehouse,highway toll station,large supermarket,exhibition hall,gymnasium and other lighting places
APPLICATION

Mainly used in workshop,factory,warehouse,highway toll station,large supermarket,exhibition hall,gymnasium and other lighting places

PRODUCT FEATURES HOUSING

High-density aviation aluminum,stretch forming,surface anodized and hardened,high gloss,incomparable Texture touching feeling.

LAMPSHADE
High-quality aviation aluminum reflective lampshade,reflective surface of lampshade is grinding pricessing,makes reflected light more uniform,soft.spotlight cover and diffuse cover are available
PADIATOR
Unique cooling design,a perfect combination with electric box,effective heat conduction,reduce the temperature of the housing,effectively ensure the service life of the ligt source and power supply;
DRIVER
Using high power LED light source,equipped with imported high efficiency driver power,compared with the sodium lamp energy saving more than 70%,real high efficiency and energy saving
Technical Parameters

Model No.

ZGC-GKD285W250-30

ZGC-GKD362W284-50

Power

30W

50W

LED Qty

5730   60PCS

5730   100PCS

Luminous Flux

2568lm±10%

4370lm±10%

Product Size

φ285*250mm

φ285*250mm

Material

Aluminum

Aluminum

CCT

2700-6500K

2700-6500K

Input Voltage

AC100-240V 50/60Hz

AC100-240V 50/60Hz
