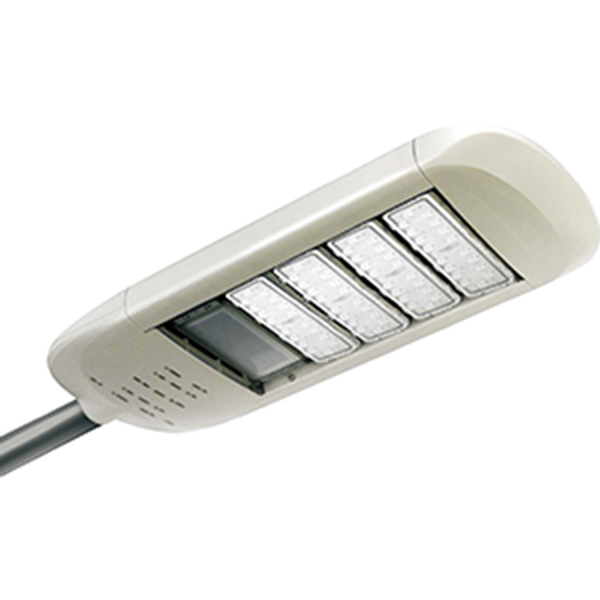

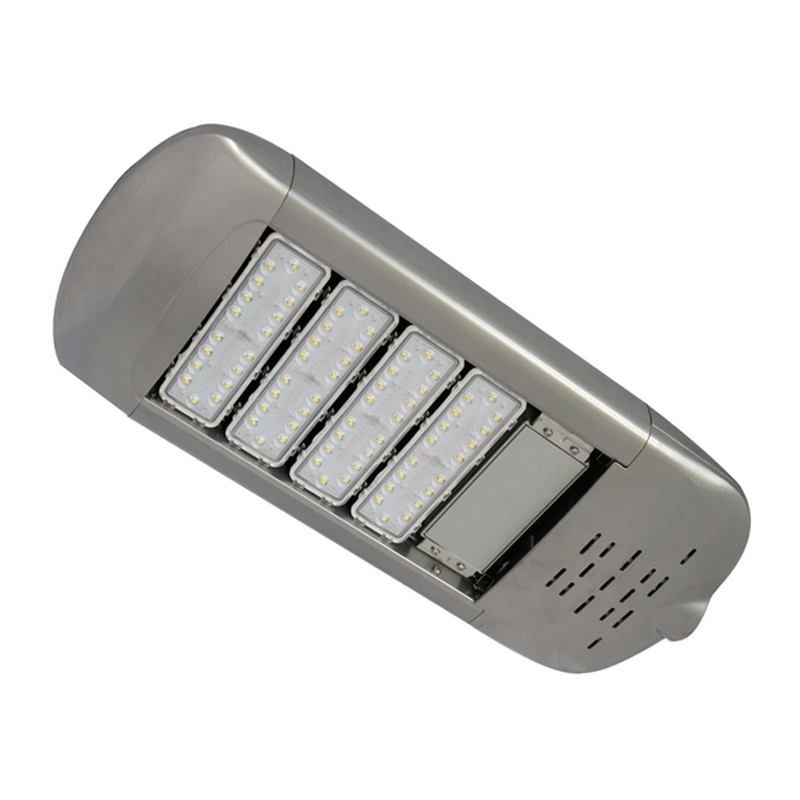

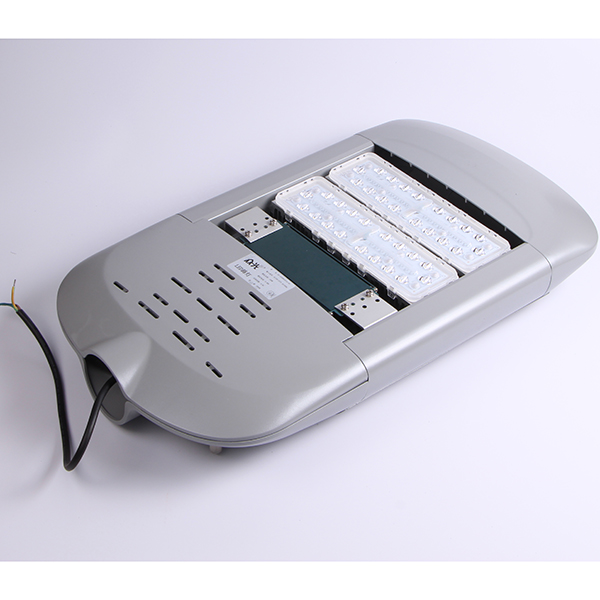

ALPINE SERIES LED STREET LIGHT
Scope of application Roads, sidewalks, squares, schools, parks, gardens, residential areas and other outdoor places that need lighting
Power supply
Using constant currant drivers supply, high precise constant current, stability, energy-saving and effective protection of lifespan
Scope of application
Roads, sidewalks, squares, schools, parks, gardens, residential areas and other outdoor places that need lighting
Housing
Die-cast by high density Seiko aviation aluminum  Anodizing surface processing to prevent oxidation, UV, corrosion and other harsh outdoor environments  High thermal efficiency and beautiful
Housing
Adapts optical glass to offer thee high light transmittance, batwing secondary optical design to make a high light efficiencyLight distribution meets the needs of the road lighting No glare, improving safe driving
Light source
With integrated high-power LED as a light source, low-voltage DC driving, reliable, high efficiency, multicolor temperature, high color rendering index
Technical Parameters

Model No.

Power

LED Qty

Luminous Flux

Product Size

Material

CCT

Input Voltage

ZGC-LD485W330T1A-60

60W

Samsung 18*1

huayang power

lightning

protection 2 kv

5700lm±10%

485*330*90mm

Die-cast

aluminum

2700-6500K

AC90-305V

50/60Hz

ZGC-LD590W330T1A-80

80W

Samsung 18*2

huayang power

lightning

protection 2 kv

7600lm±10%

590*330*90mm

Die-cast

aluminum

2700-6500K

AC90-305V

50/60Hz

ZGC-LD590W330T1A-100

100W

Samsung 18*2

huayang power

lightning

protection 2 kv

9500lm±10%

590*330*90mm

Die-cast

aluminum

2700-6500K

AC90-305V

50/60Hz

ZGC-LD590W330T1A-120

120W

Samsung 18*2

huayang power

lightning

protection 2 kv

11400lm±10%

590*330*90mm

Die-cast

aluminum

2700-6500K

AC90-305V

50/60Hz

ZGC-LD690W330T1A-150

150W

Samsung 18*3

huayang power

lightning

protection 2 kv

14250lm±10%

690*330*90mm

Die-cast

aluminum

2700-6500K

AC90-305V

50/60Hz

ZGC-LD690W330T1A-180

180W

Samsung 18*3

huayang power

lightning

protection 2 kv

17100lm±10%

690*330*90mm

Die-cast

aluminum

2700-6500K

AC90-305V

50/60Hz

ZGC-LD770W330T1A-200

200W

Samsung 18*4

huayang power

lightning

protection 2 kv

19000lm±10%

770*330*90mm

Die-cast

aluminum

2700-6500K

AC90-305V

50/60Hz
